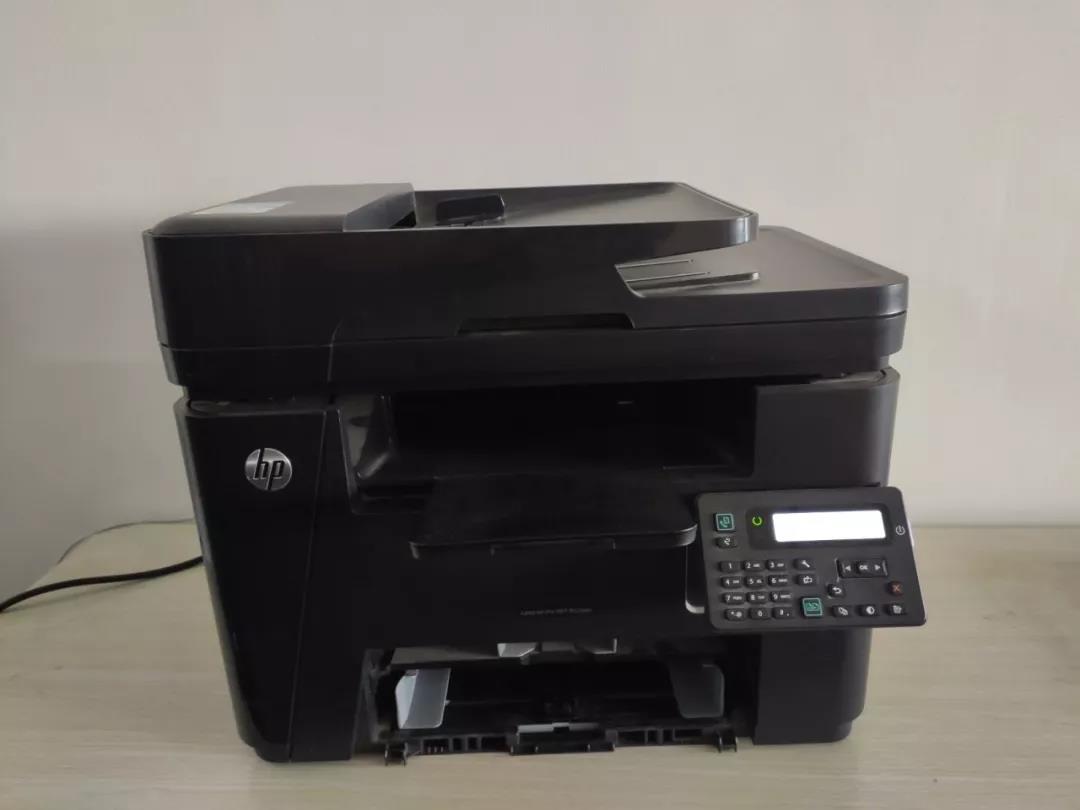

HP LaserJet Pro MFP M226dn安装网络打印机和扫描仪

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>今天帮客户安装一台HP LaserJet Pro MFP M226dn网络打印机,如何设置网络打印机IP地址?电脑如何安装M226dn打印机驱动?如何安装扫描仪,扫描文件如何自动扫到自己的电脑上?

01

设备打印机IP地址

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>HP LaserJet Pro MFP M226dn网络打印机,如下图所示:

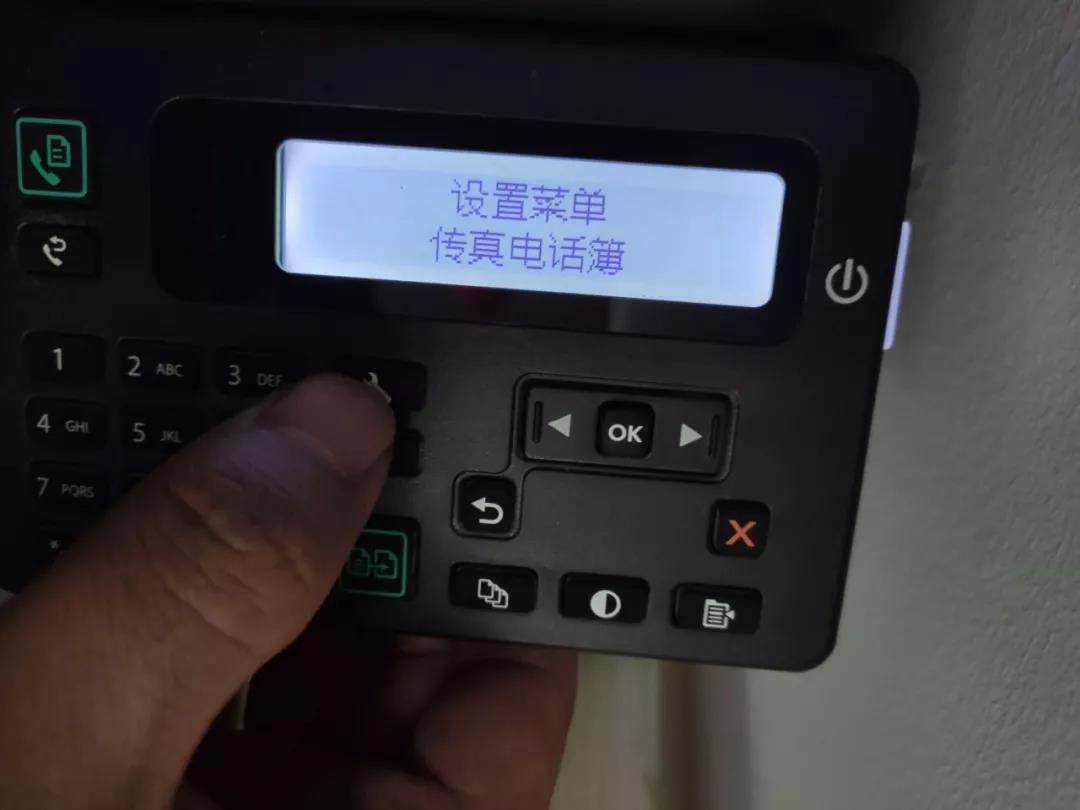

1.jpg1、将打印机通过网线连接到公司局域网中,在打印机面板上,选择设置图标,进入“设置菜单”。

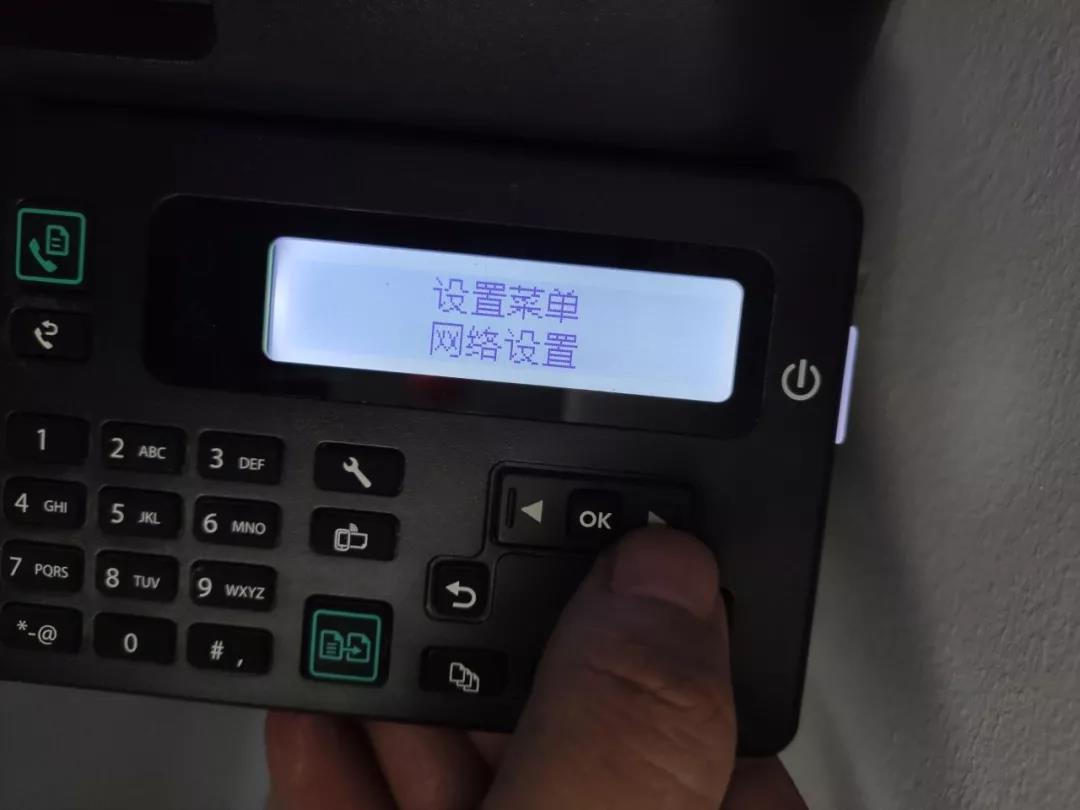

1.jpg2、按面板上的向右键,选择“网络设置”

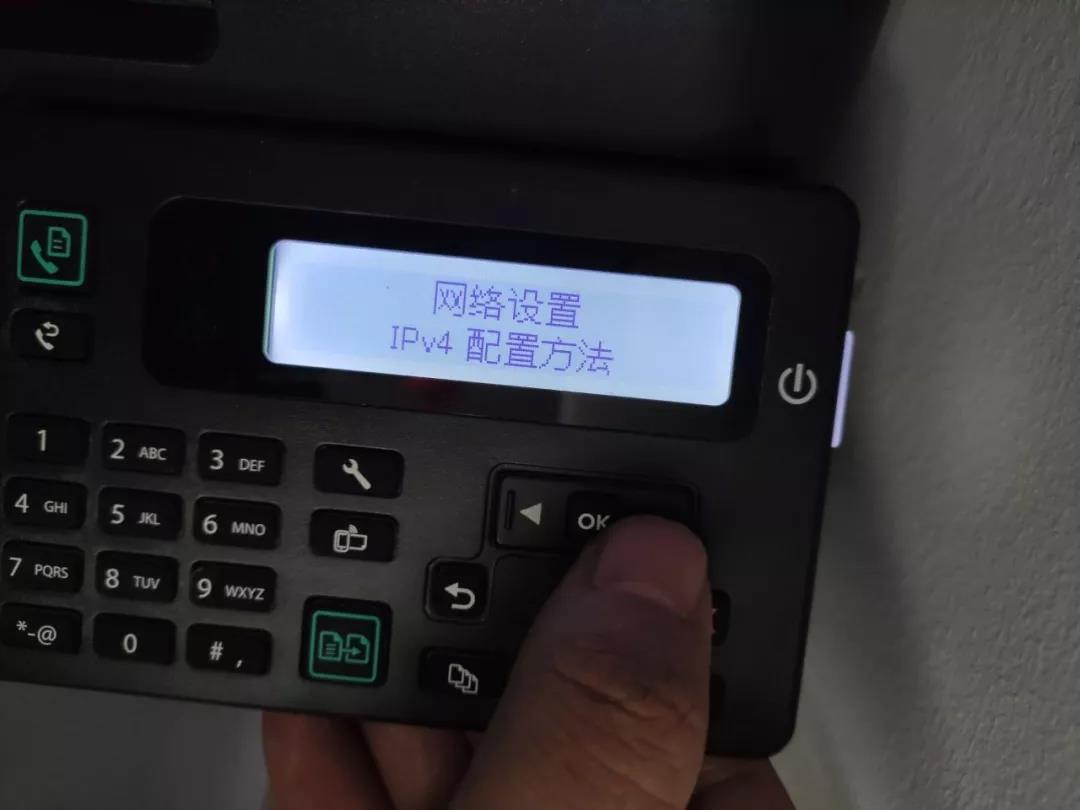

2.jpg3、点击ok,出现IPv4配置方法。

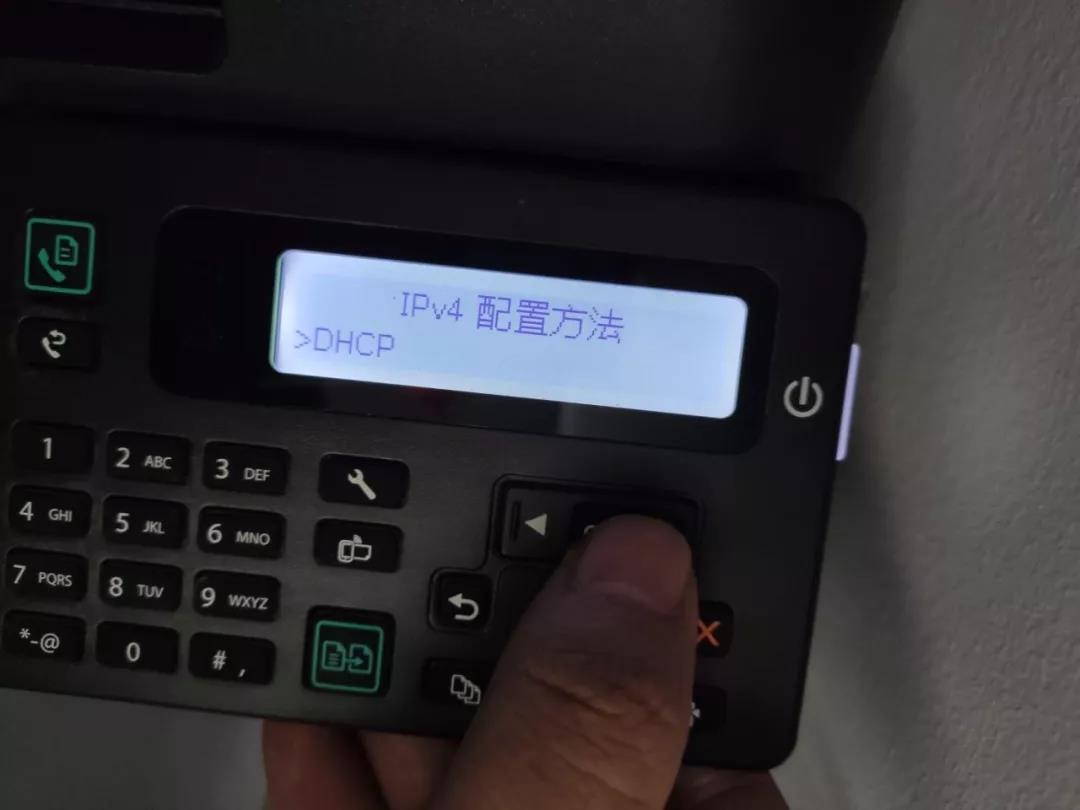

3.jpg4、出现DHCP,由于是网络打印机,为电脑提供服务,如果设置为DHCP,打印机的IP会变动,你的电脑就无法找到此打印机,所以我们必须设置为手动。

4.jpg5、点击向右键箭头,选择”手动”,并点击ok。

5.jpg6、设置局域网内的IP地址,如何查看局域网的IP地址,可以到路由器查看。打印机的IP地址,不可以在路由器的DHCP地址池中的IP,如果在DHCP地址池中,会出现IP地址冲突 。

6.jpg7、设置IP地址,为10.0.0.250,如何设置10,可以输入010就是10。

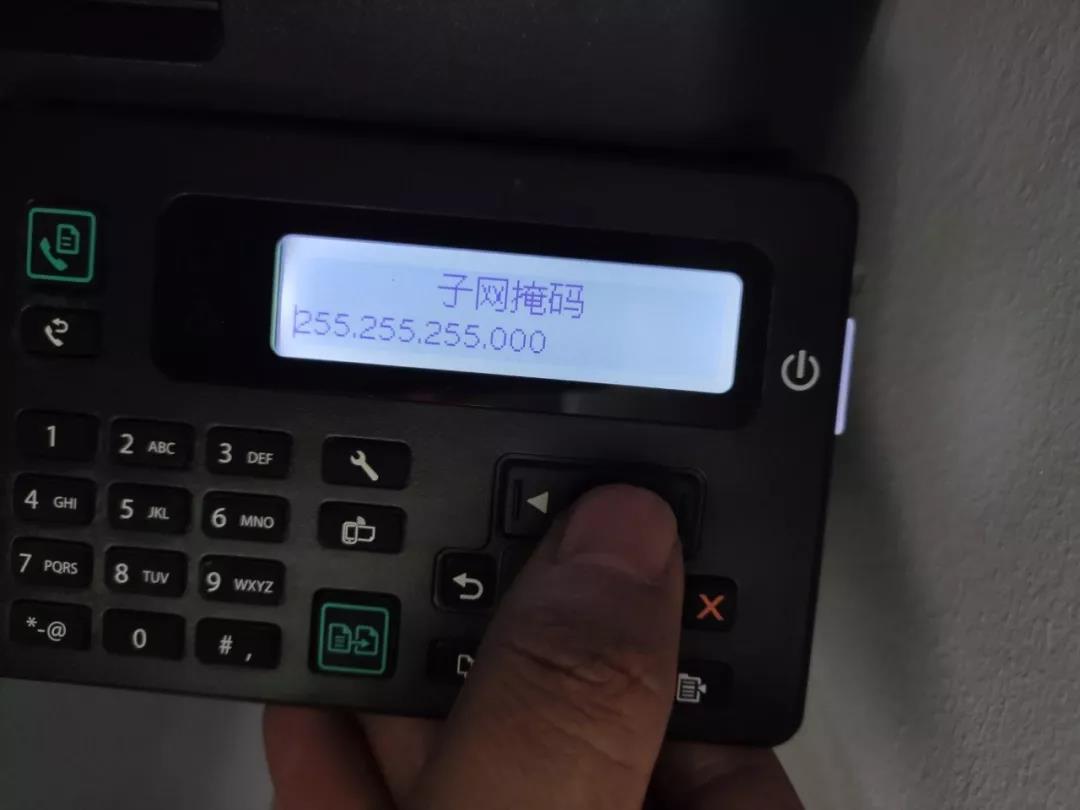

7.jpg8、设置子网掩码。

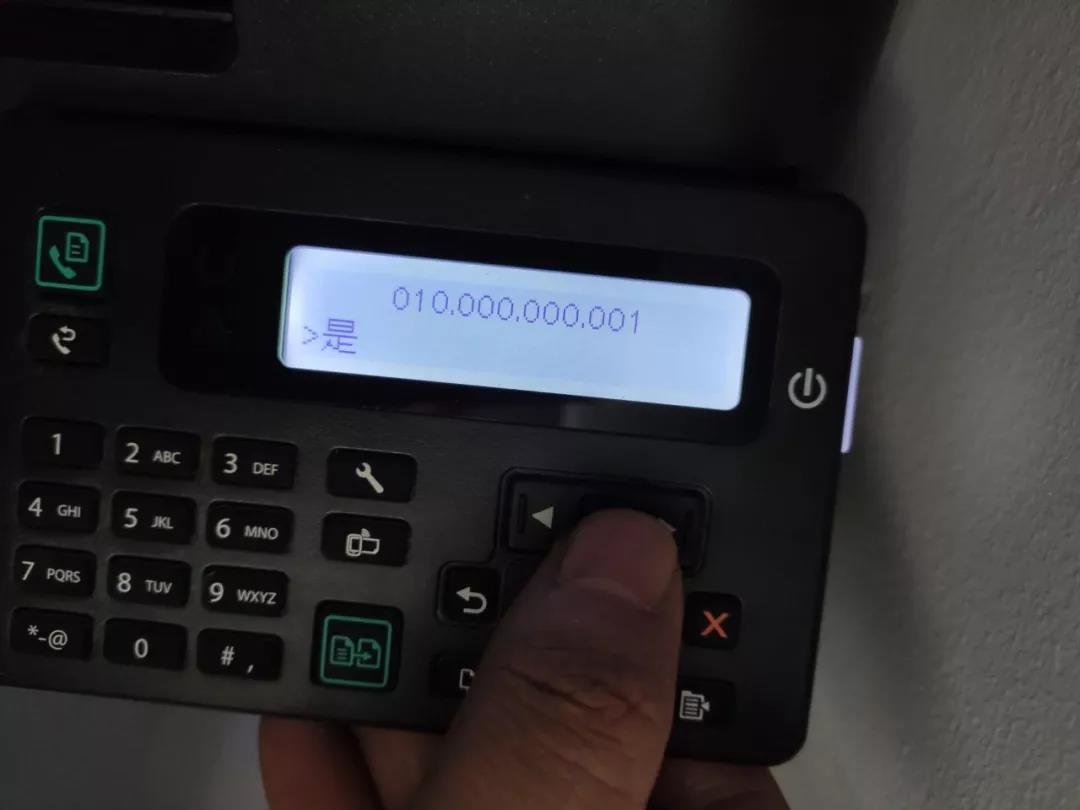

8.jpg9、设置打印机地址网关。

9.jpg10、点击ok。

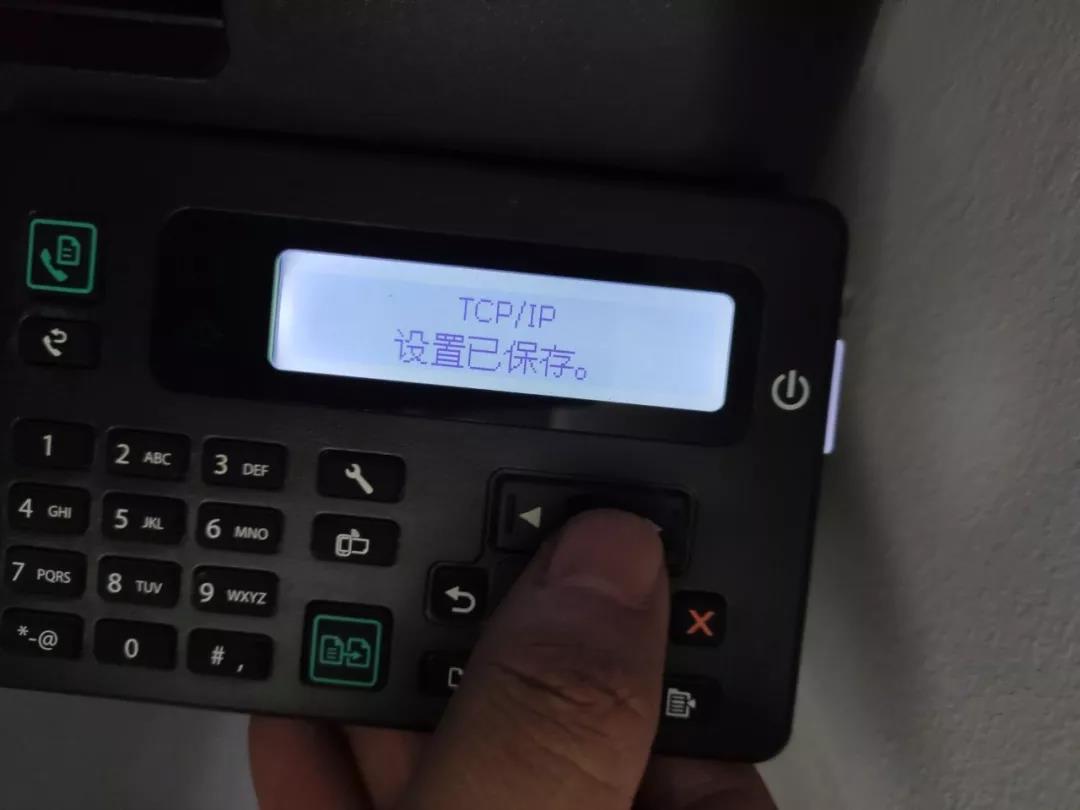

10.jpg11、点击ok后,显示设置已保存,说明打印机的IP地址已经设置成功。

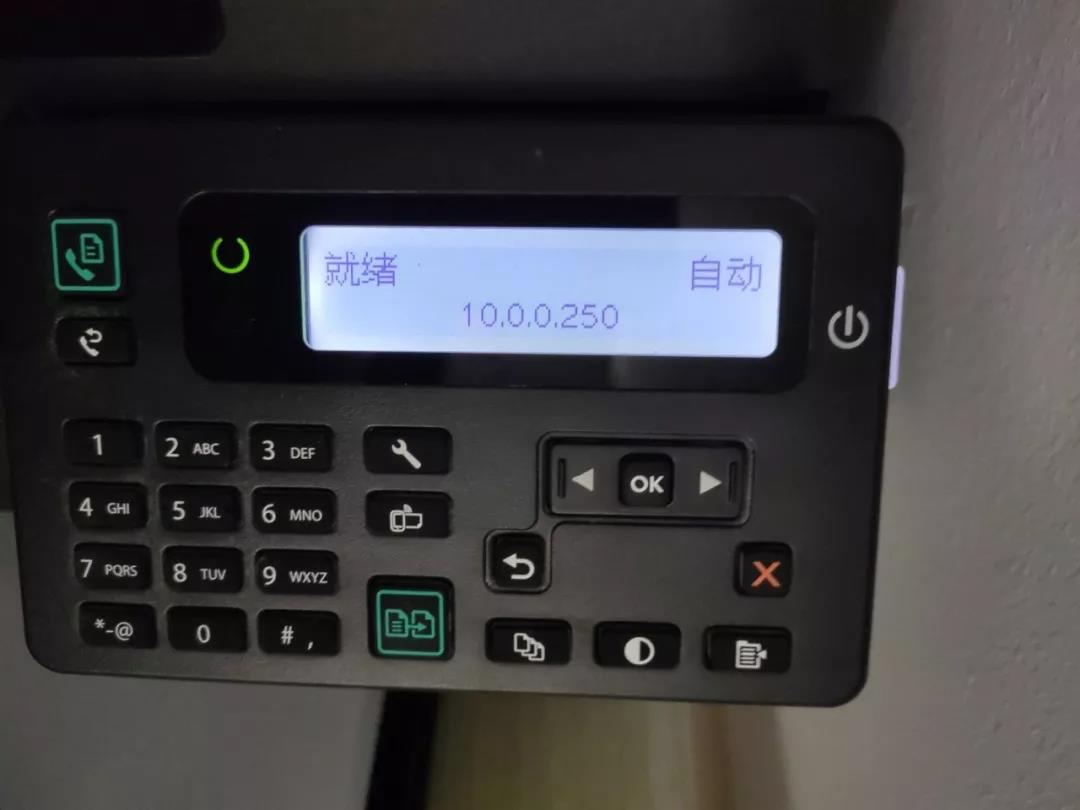

11.jpg12、在打印机面板上也可以看到,刚才设置的IP地址。


02

电脑安装打印机驱动和扫描仪

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>1、电脑如何安装HP LaserJet Pro MFP M226dn,打印机驱动,和扫描仪软件呢?

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>2、到HP官方网站,查找此打印机的驱动。打开HP官方网站,在网站中

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>https://support.hp.com/cn-zh/drivers/printers,找到“软件和驱动程序”。

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>输入打印机后面的型号,会出现相应的型号,选中后,点击提交。

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>3、网站会自动去检测你的电脑系统,需要多少位打印机驱动。

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>此时检测出来的是win10 64位操作系统。

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>4、网站就会搜索出来,win10-64操作系统的打印机驱动。

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>搜索出来的所有驱动程序,我们怎么选择呢?

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>选择 HPLaser Jet Pro MFP M225-226 Printer Full Software and Drives。这个驱动包含M225和M226的打印机驱动,扫描仪软件和一些HP支持软件完整软件包。点击此软件后面的下载。

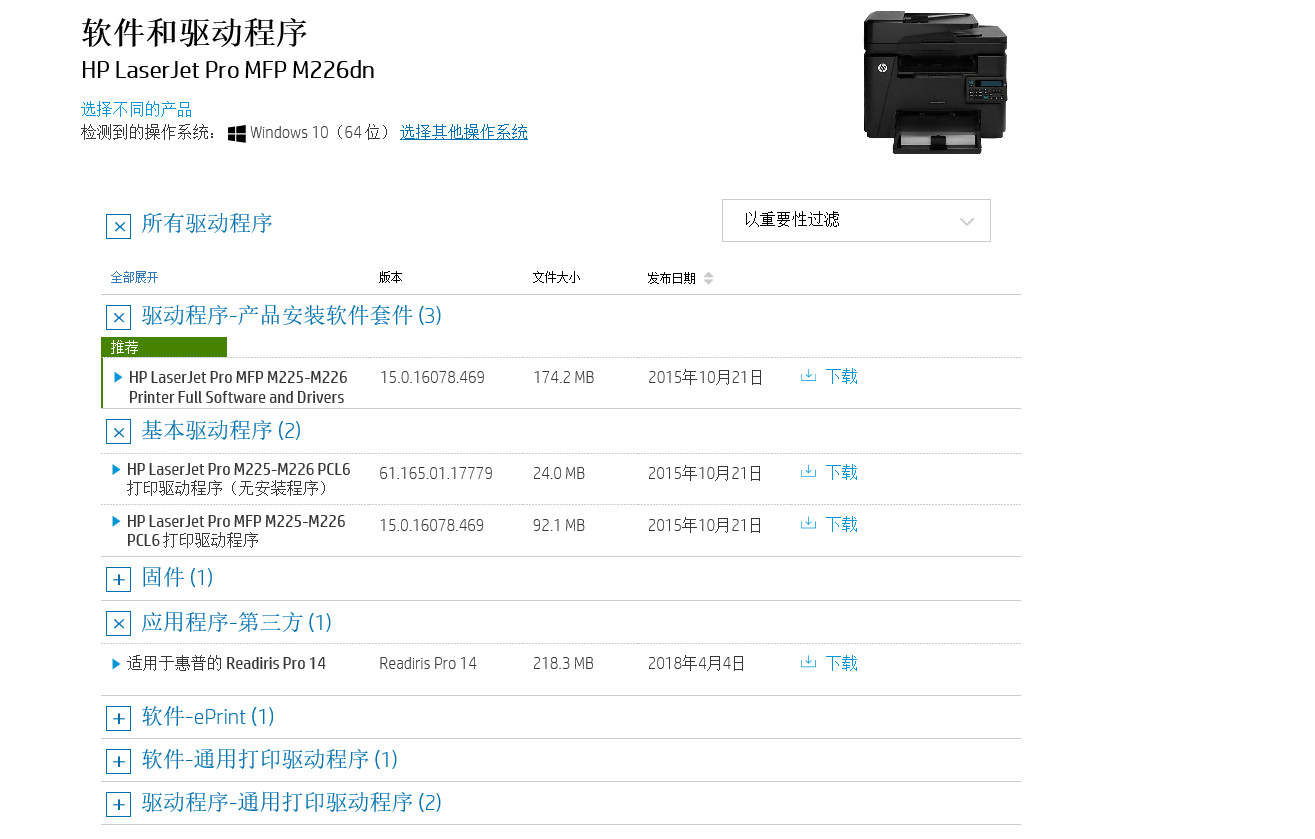

111111.jpg5、打印机完整软件包下载完成。

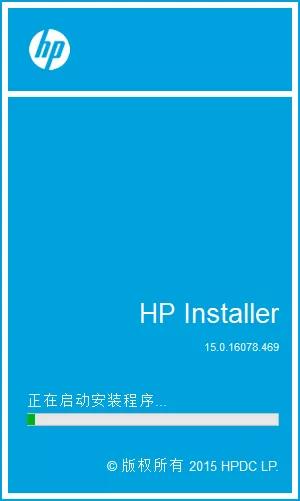

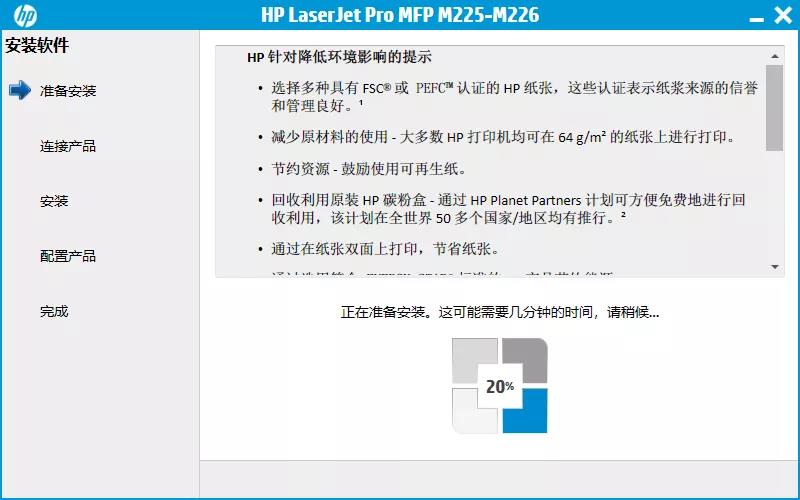

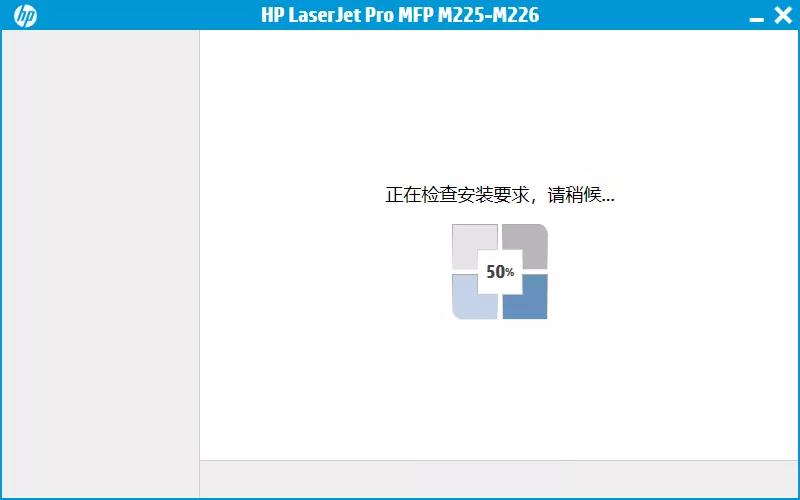

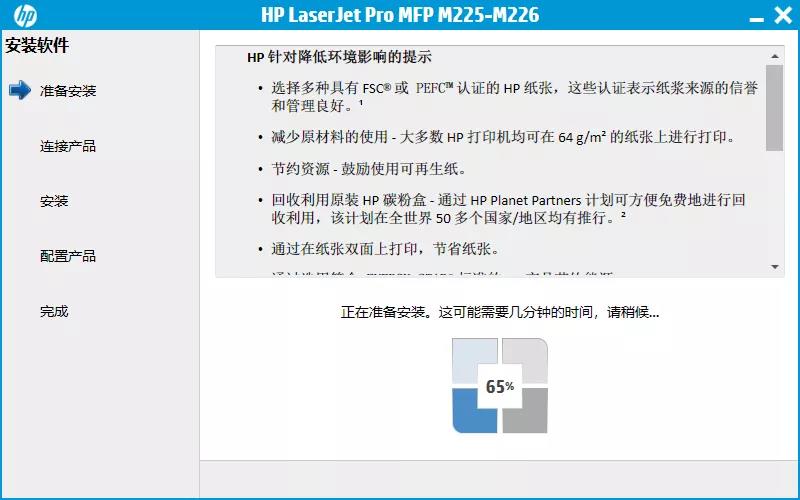

6、双击安装,点击运行。

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>7、正在提取软件。

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, " letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>8、提取完成后,进行软件安装。

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>3333.jpg

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>9、检查安装环境。

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>5678987.jpg

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>10、条款协议,点击下一步。

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>9999.jpg

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>11、准备安装过程。

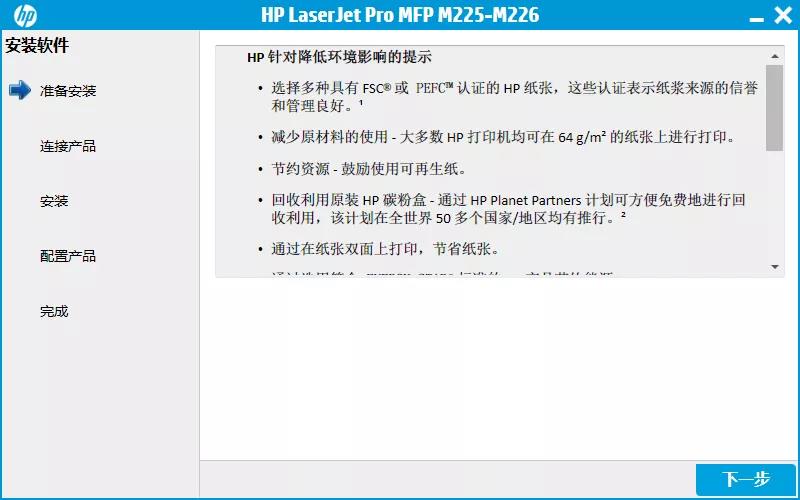

12、点击下一步。

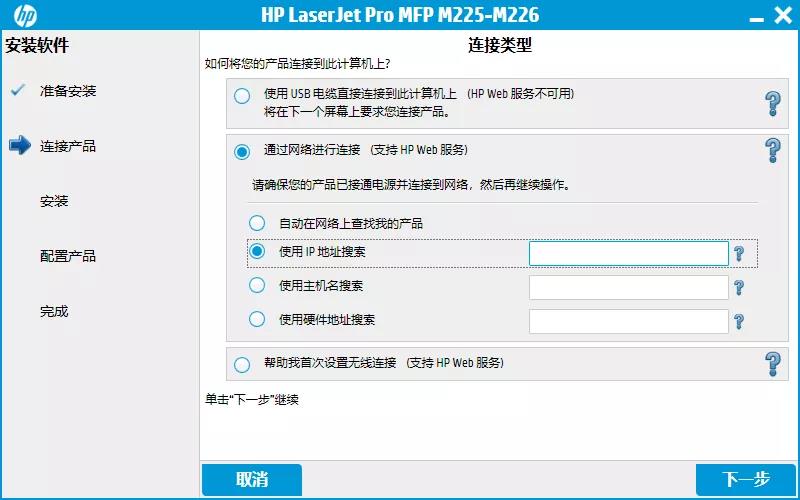

13、连接产品,选择“通过网络进行连接”。选择“使用IP地址搜索”。


https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>14、这时我们需要使用电脑去ping 10.0.0.250打印机的IP地址,查看电脑和打印机之前的网络是否正常通信。

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>如下图所示:可以正常通信。

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>14.jpg15、在使用IP地址搜索中,输入打印机的IP地址 10.0.0.250,点击下一步。

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>15.jpg

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>16、此时软件已经找到这台网络打印机。找到打印机的型号,IP地址,打印机主机名。

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>16.jpg

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>17、开始打印机软件安装,这时就会安装打印机驱动程序和扫描仪软件等。

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>17.jpg

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>171.jpg

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>18、软件安装完成后,关闭此软件。

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>18.jpg

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>完成后,打印测试页,可以正常打印。

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>19、在桌面上可以找到HP Scan软件,我们双击打开。

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>19.jpg

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>20、扫描文件源,需要选择是从文档输稿器还是从玻璃扫描。

https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>20.jpg

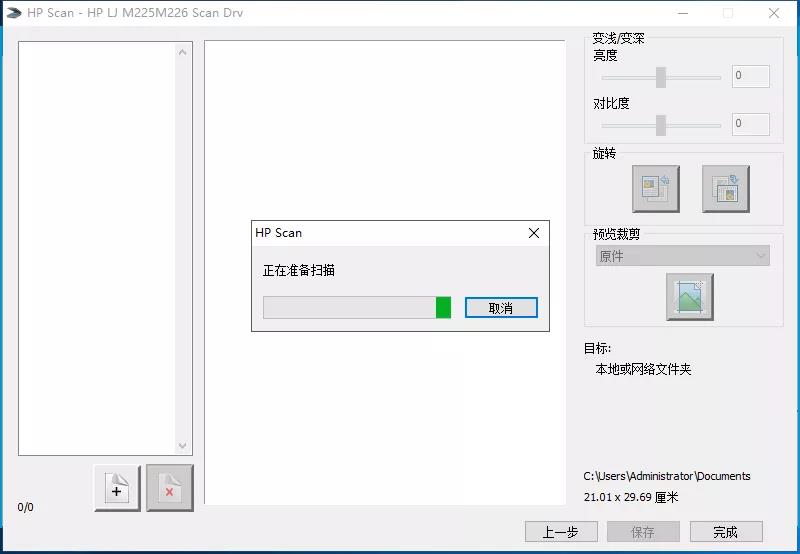

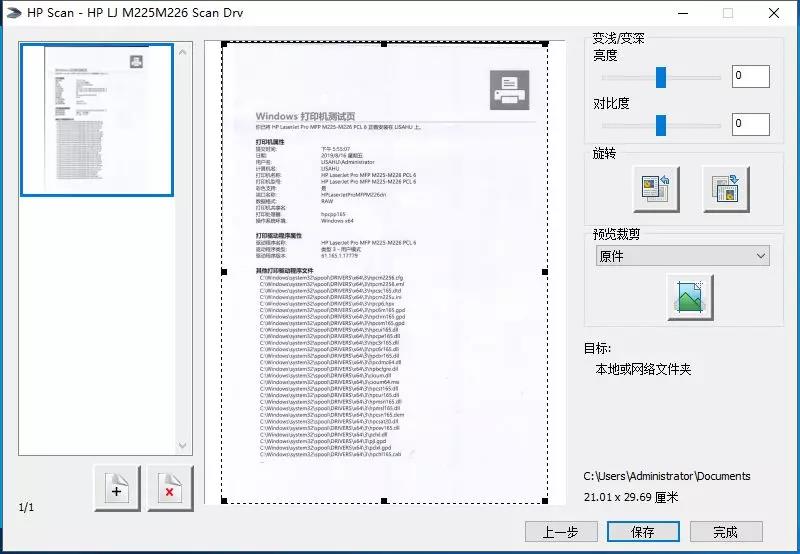

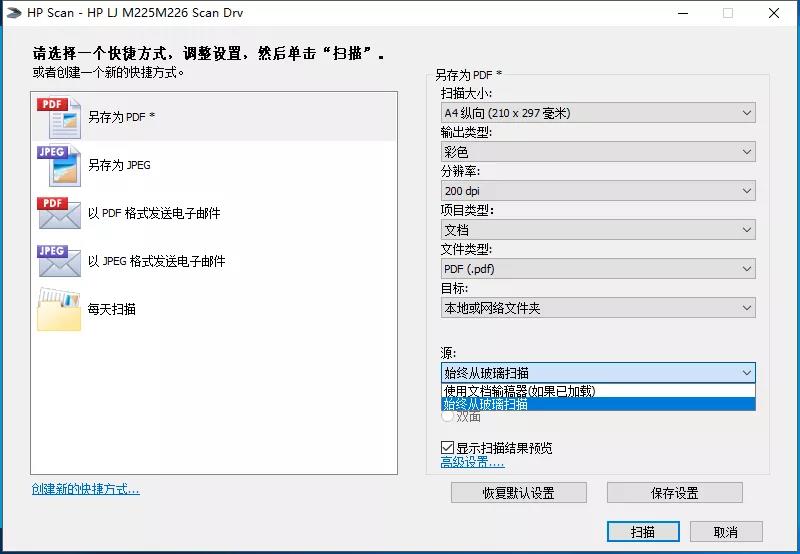

21、将刚才打印机的测试页,放到玻璃上扫描,正在扫描文件。


https://www.52ruodian.com/t-family: -apple-system-font, BlinkMacSystemFont, ‘Helvetica Neue’, ‘PingFang SC’, ‘Hiragino Sans GB’, ‘Microsoft YaHei UI’, ‘Microsoft YaHei’, Arial, sans-serif; font-size: 17px; letter-spacing: 0.544px; text-align: justify; white-space: normal; background-color: #ffffff; box-sizing: border-box !important; word-wrap: break-word !important;”>22、文件扫描成功。

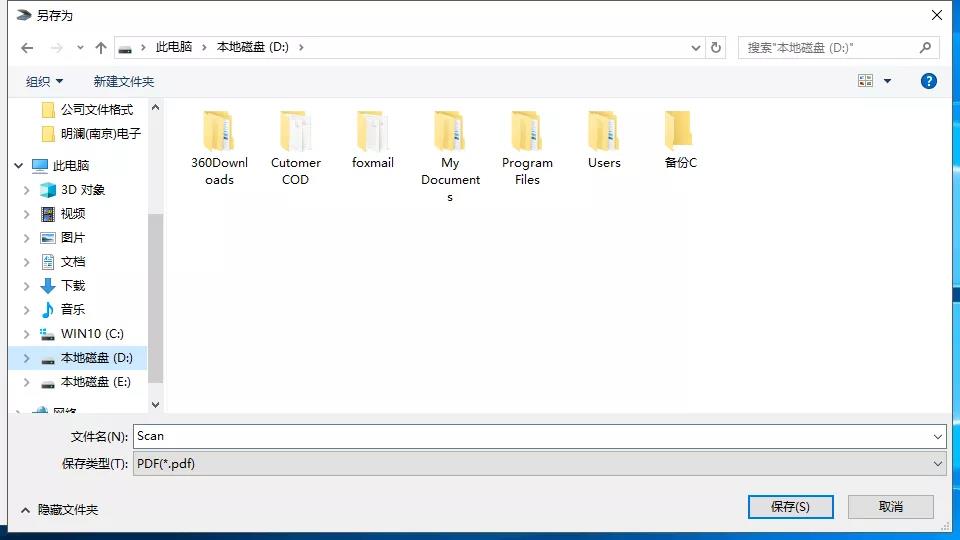

23、点击保存到本地电脑。

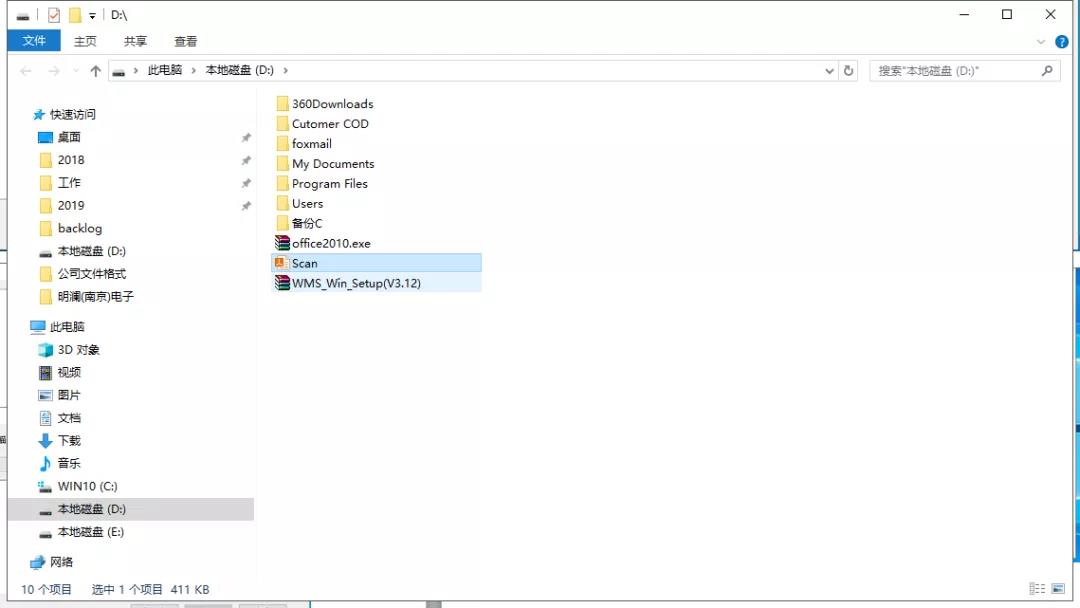

23.jpg24、扫描文件完成。


如有解决不了的网络问题请联系我!
